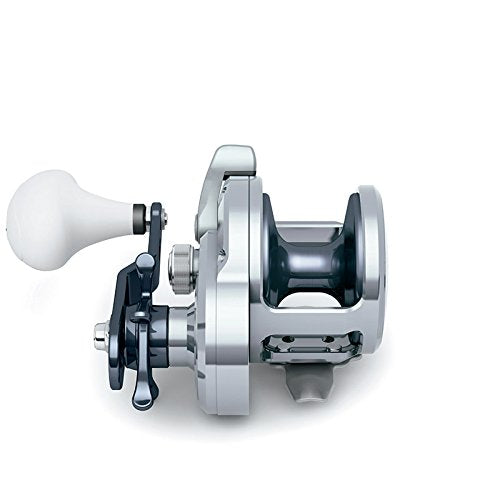

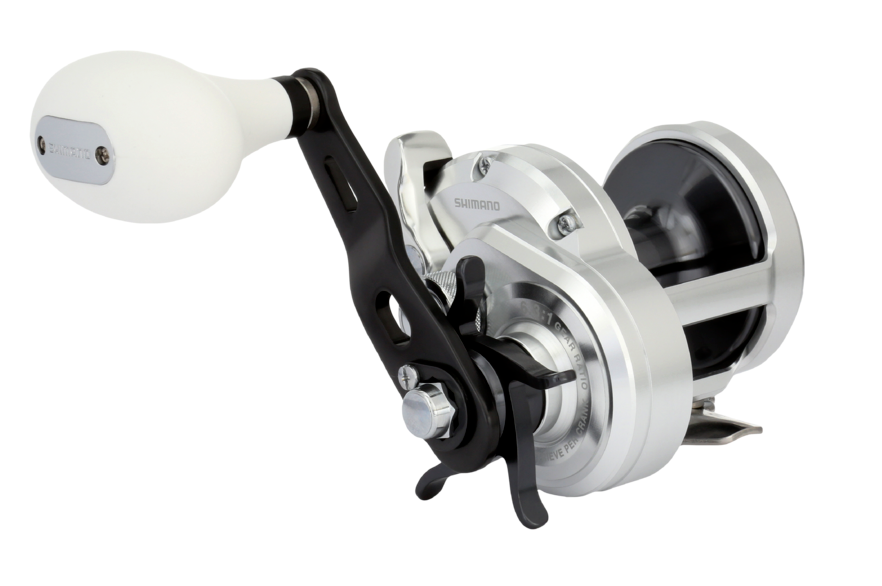

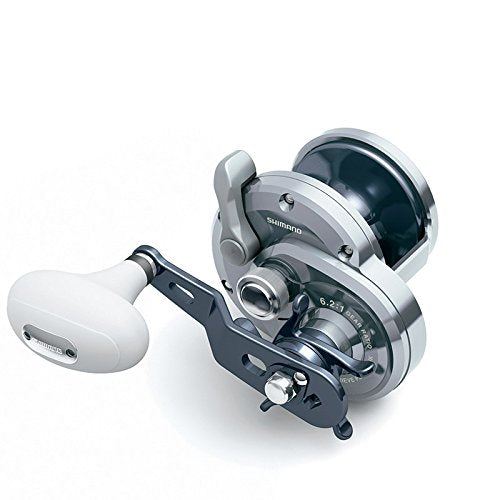

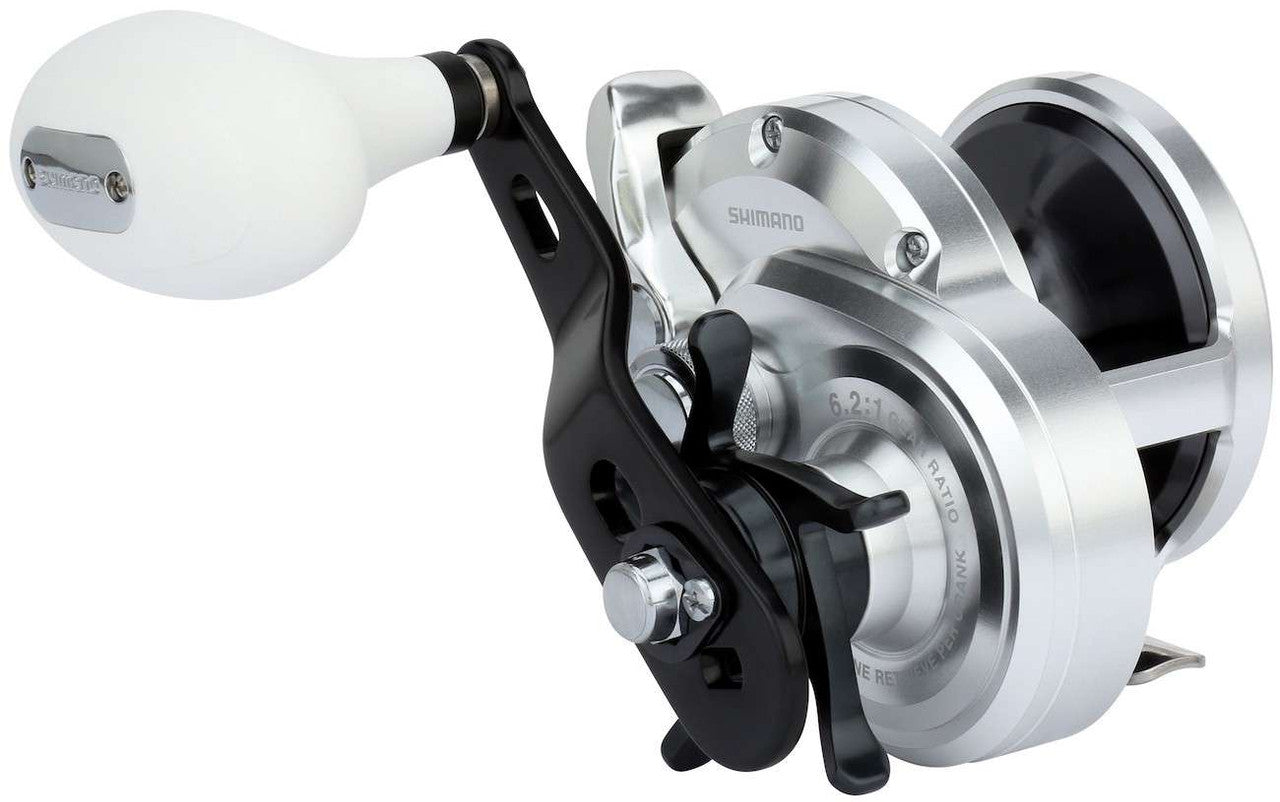

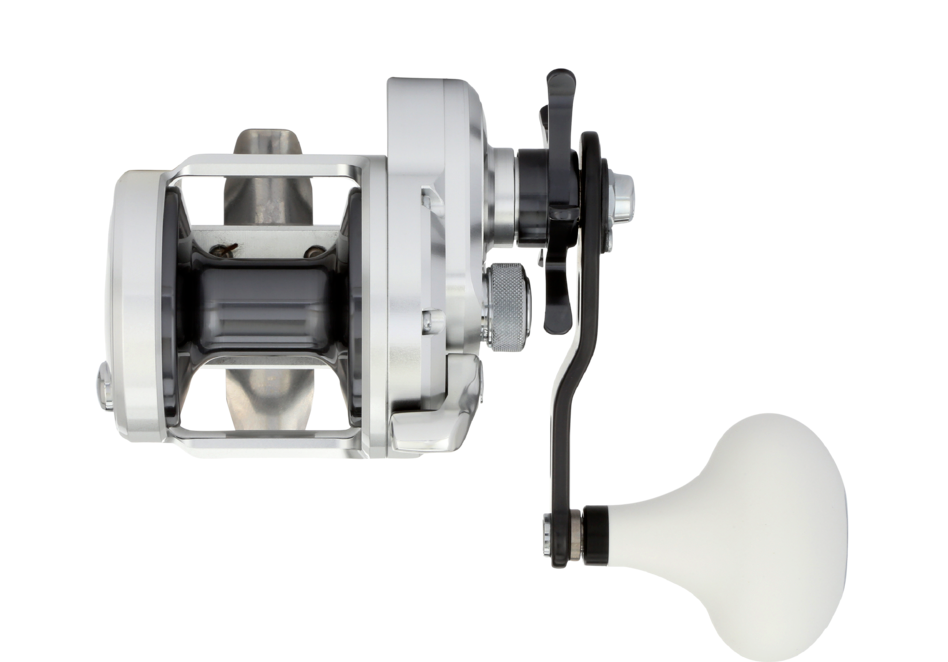

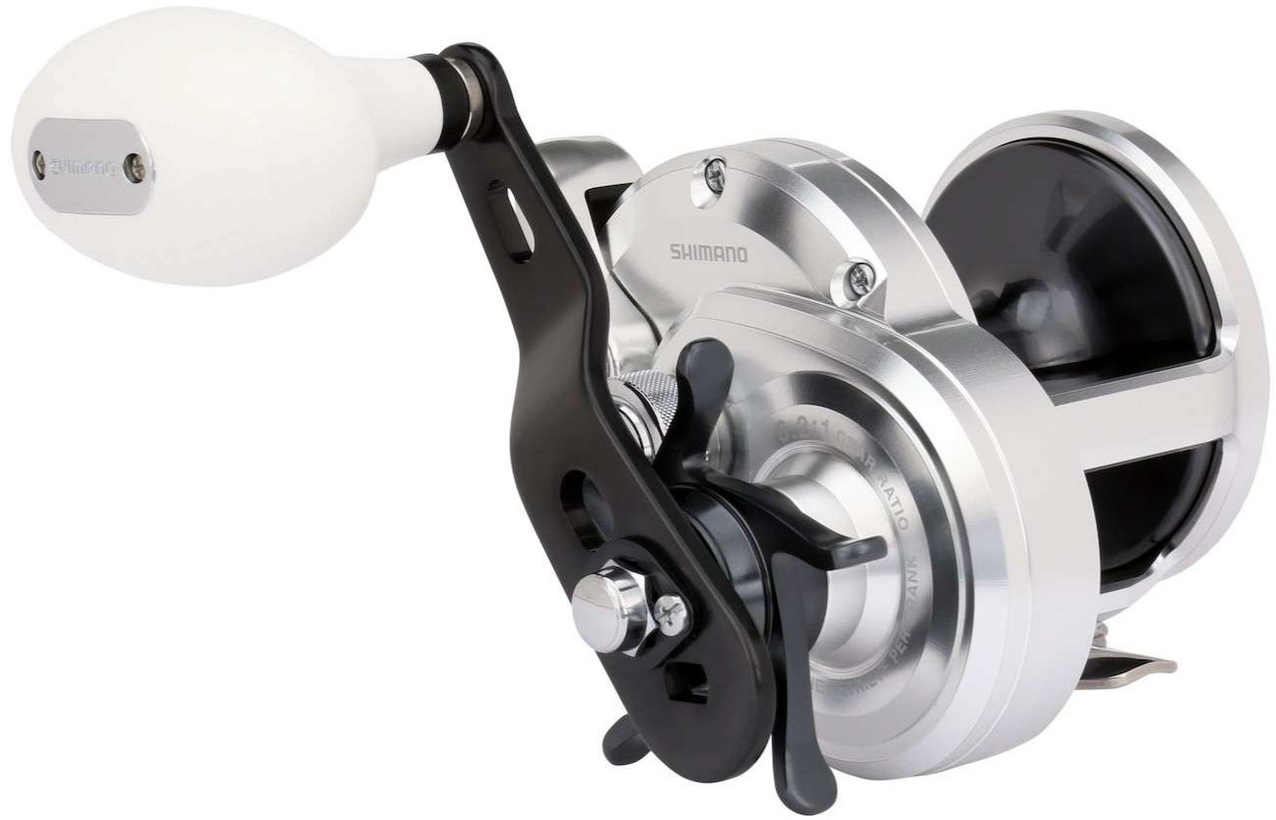

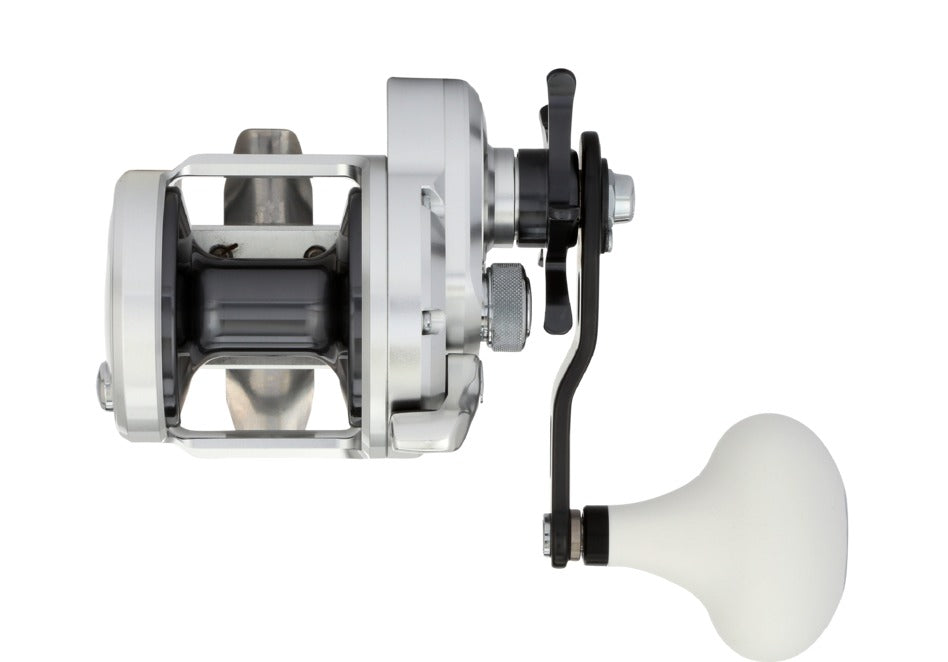

Name: Shimano Trinidad A Star Drag Conventional Reels
Brand: Shimano
SKU: TN16A
Price: 564.99 USD
Availability: InStock

Your cart is empty

Start shopping

Add order note

Order Chart

Trinidad is a name that resonates with all saltwater anglers and has earned an impeccable reputation for power and reliability. Shimano's quest for the Trinidad A was no easy task: lighter, smaller and more compact were the desired key physical characteristics — and they were accomplished. The performance goal was to build the best casting reel in this category: We shattered our targets and have built a reel for casting which all other casting reels will be measured by.

Features:

HAGANE Body
S-Compact Body
HEG
Super Free Spool
X-Ship
Cross Carbon Drag
EI
S A-RB

Technologies:

S-Compact Body allows for all-day comfort and improved fishability by making the palming side plate up to 25% smaller than the A-Side plate.
HEG consists of not only the gears, but also the frame, setplate, and handle-side sideplate. First we increased the size of the drive gear and the pinion gear to offer increased leverage and power. By using a one-piece frame that incorporates the setplate and adding a one-piece stamped sideplate, we have eliminated flex in the drive train that causes gears to bind under pressure.
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.

MODEL	WEIGHT	POWERPRO LINE CAPACITY	GEAR RATIO	MAX DRAG	MONO LINE CAPACITY	RETRIEVE	LINE RETRIEVE PER CRANK	BEARINGS	LOWER GEAR RATIO	LOWER LINE RETRIEVE PER CRANK

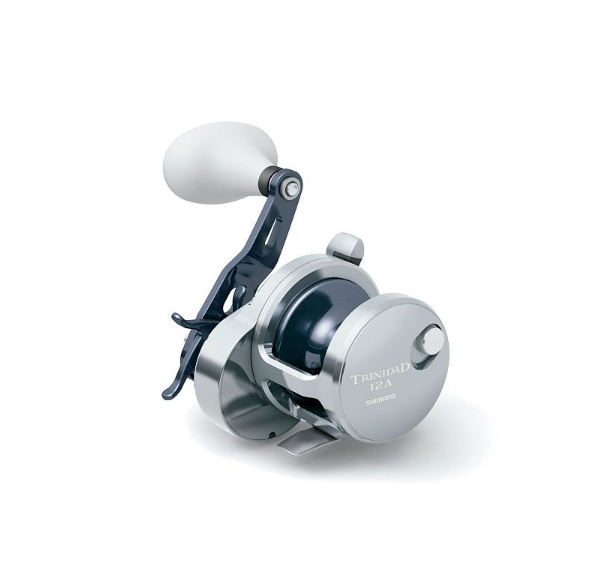

TN12A	13.9	40/280, 50/275, 65/175	6.3:1	17	12/300, 15/215, 20/150	Right	38	8+1	-	-
TN14A	14.8	40/375, 50/370, 65/240	6.3:1	17	12/420, 15/280, 20/200	Right	38	8+1	-	-
TN16A	19.4	50/530, 65/330, 80/250	6.2:1	25	15/420, 20/300, 25/240	Right	46	8+1	-	-

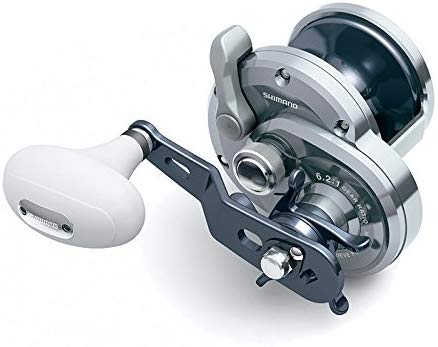

TN16NA	19.3	50/370, 65/235, 80/190	6.2:1	25	15/260, 20/200, 25/150	Right	46	8+1	-	-

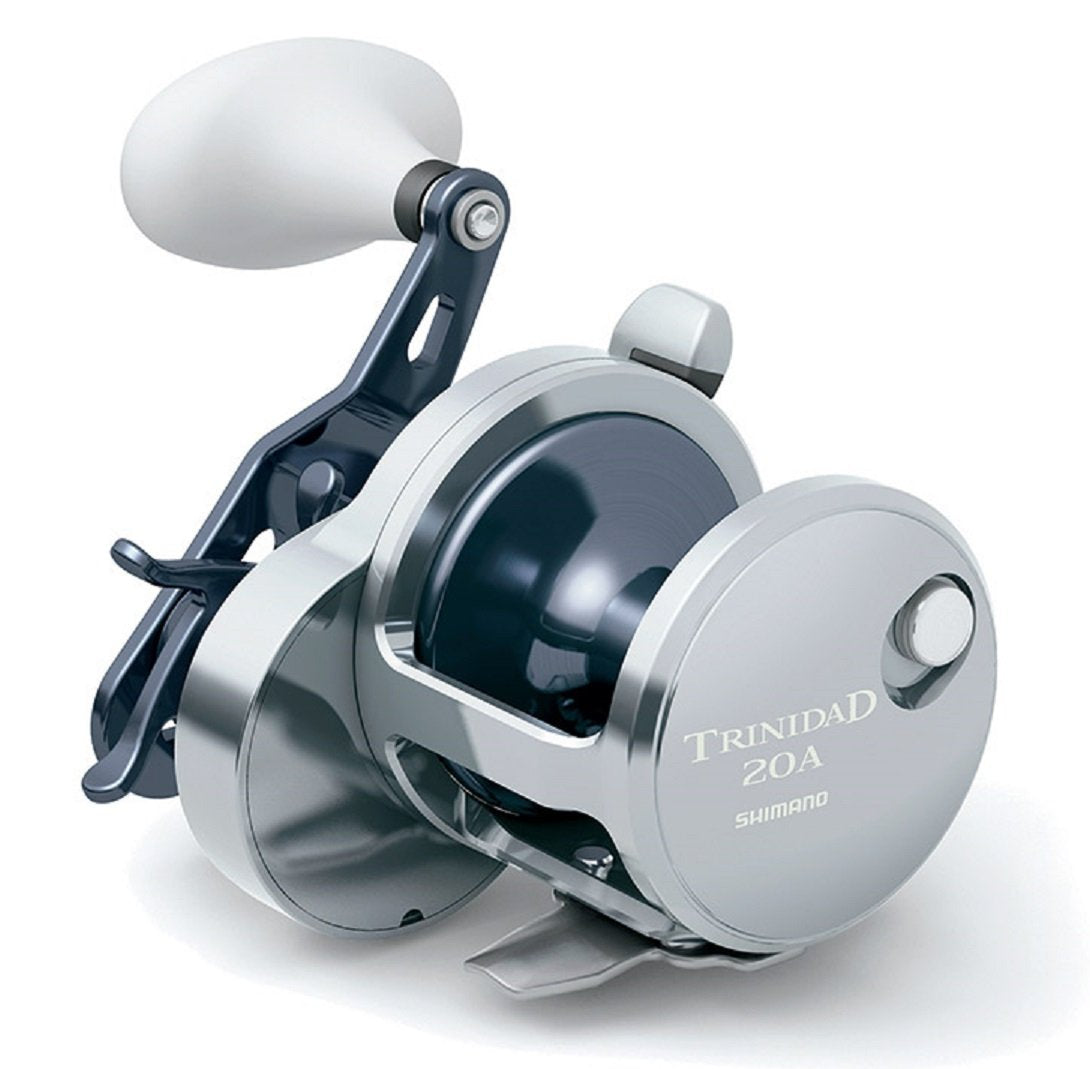

TN20A	19.8	50/710, 65/375, 80/310	6.2:1	25	20/410, 25/330, 30/280	Right	46	8+1	-	-
TN30A	20.5	50/1015, 65/515, 80/415	6.2:1	25	25/420,30/350	Right	46	8+1	-	-

SKU	UPC
TN12A	022255129602
TN14A	022255129619
TN16A	022255129626
TN16NA	022255129633
TN20A	022255129640
