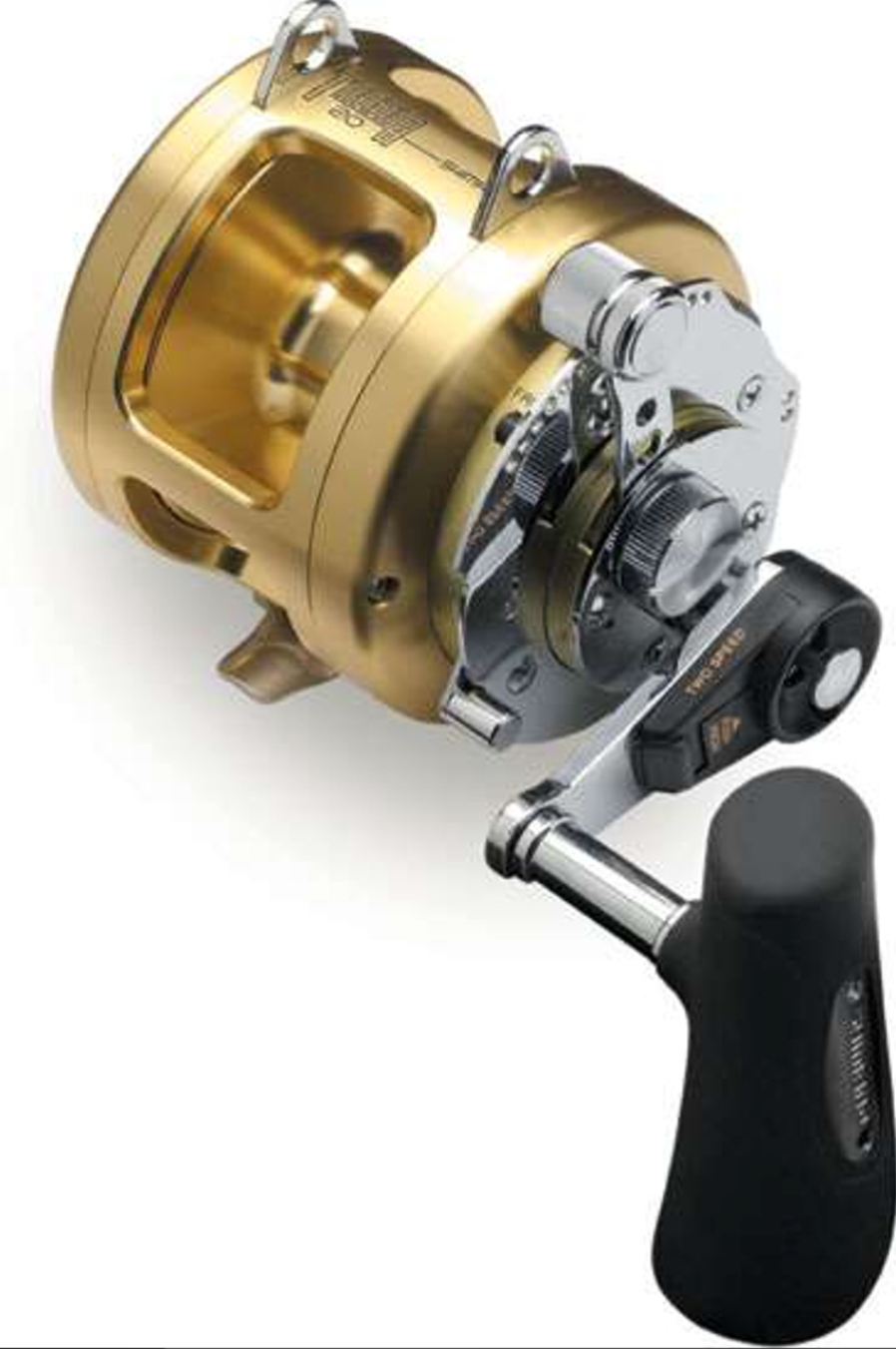

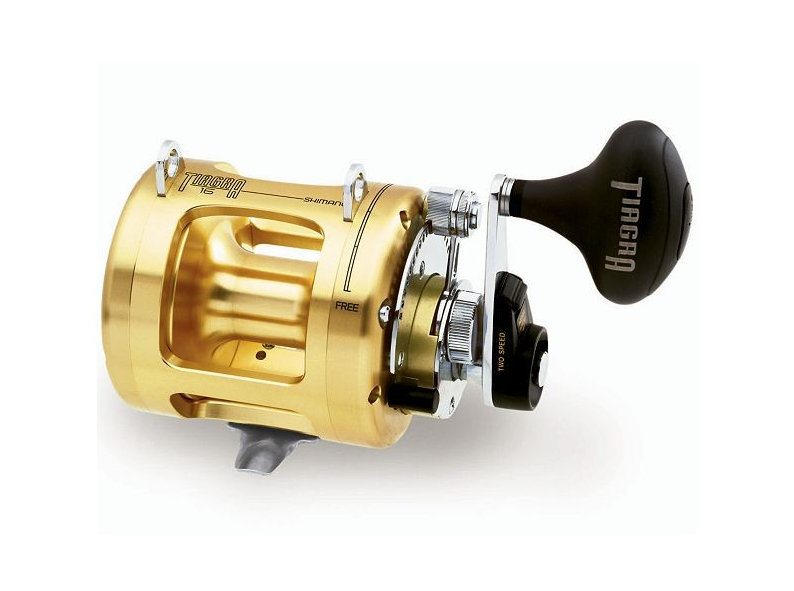

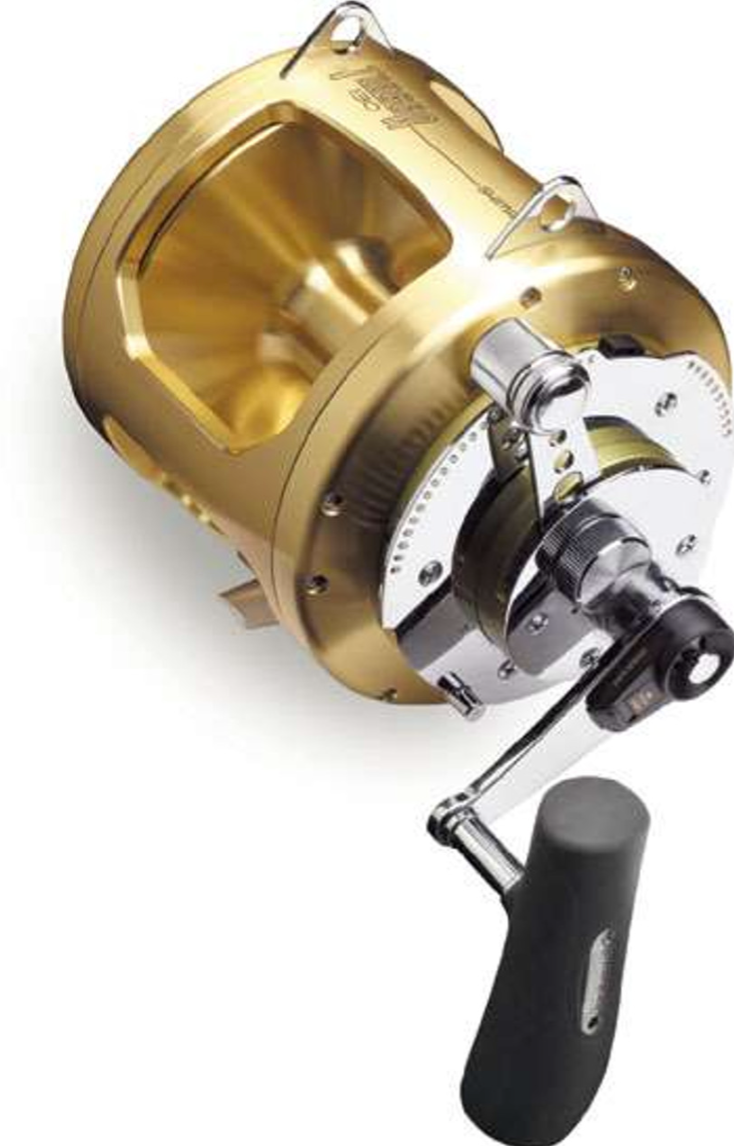

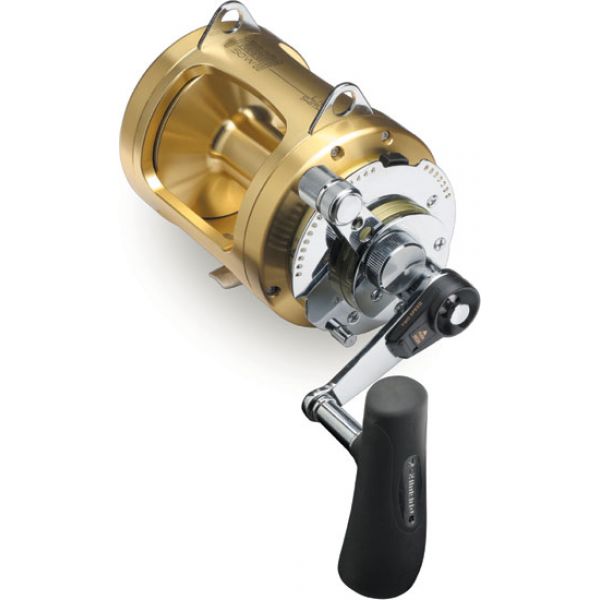

Shimano Tiagra A Two Speed Lever Drag Reels
Shimano Tiagra A Two Speed Lever Drag Reels
TI30WLRSA
Ocean Township
3501 Sunset Avenue
Ocean Township NJ 07712
United States
Order Chart
- HAGANE Body
- HEG
- Cross Carbon Drag
- HEI
- A-RB
- HEG consists of not only the gears, but also the frame, setplate, and handle-side sideplate. First we increased the size of the drive gear and the pinion gear to offer increased leverage and power. By using a one-piece frame that incorporates the setplate and adding a one-piece stamped sideplate, we have eliminated flex in the drive train that causes gears to bind under pressure.
- A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing. These bearings will last at least 10 times longer than standard stainless-steel ball bearings in high salinity environments.
- The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
- The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
The number one choice of serious offshore anglers and captains, Tiagra reels feature an innovative hydrothermal drag system that virtually eliminates the drag setting variances that affect today's big-game reels. The Tiagra series offers the strength and reliability of a solid aluminum frame, making these reels ideal for fishing with heavier line for giant fish. These reels are also perfectly suited for long-range fishing.
Features:
Technologies:
MODEL | WEIGHT | POWERPRO LINE CAPACITY | GEAR RATIO | MAX DRAG | MONO LINE CAPACITY | RETRIEVE | LINE RETRIEVE PER CRANK | LOWER GEAR RATIO | LOWER LINE RETRIEVE PER CRANK | BEARINGS |
---|---|---|---|---|---|---|---|---|---|---|

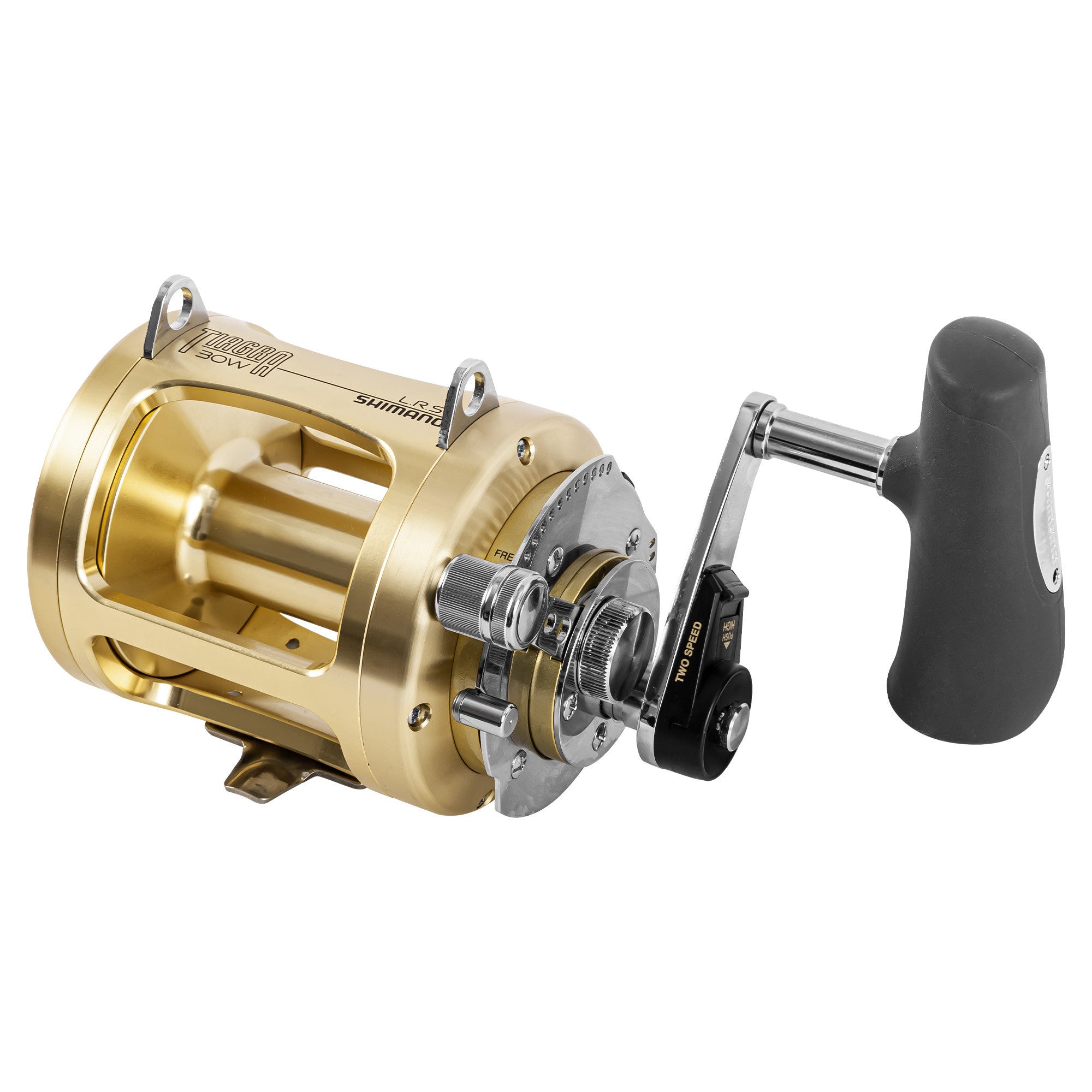

TI30WLRSA |
55.6 |
65/1435, 80/1180, 100/865 |
3.9:1 |
35 |
30/935, 50/570 |
Right |
41 |
1.7:1 |
18 |
4 |
TI50A |
83.4 |
80/1135, 100/930, 150/865 |
3.1:1 |
26 |
50/600 |
Right |
37 |
1.3:1 |
15 |
4 |

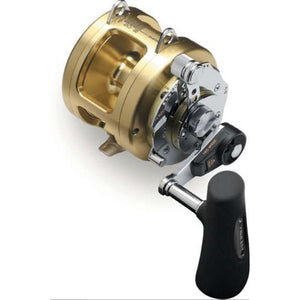

TI20A |
49.7 |
50/1225, 65/720, 80/525 |
3.9:1 |
26 |
20/690, 30/470 |
Right |
41 |
1.7:1 |
18 |
4 |

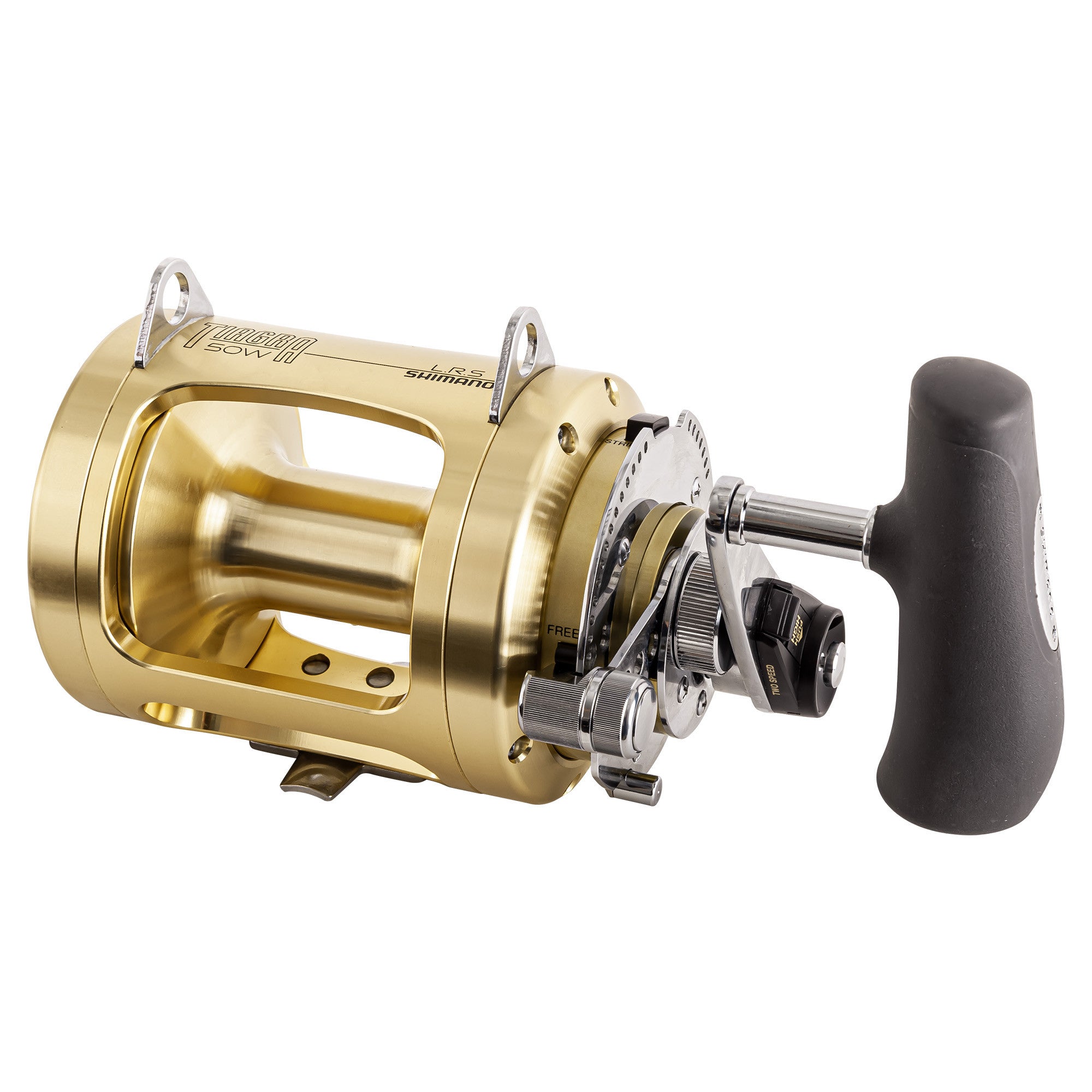

TI50WLRSA |
86.2 |
80/1575, 100/1235, 150/1180 |
3.1:1 |
40 |
80/550 |
Right |
37 |
1.3:1 |
15 |
4 |

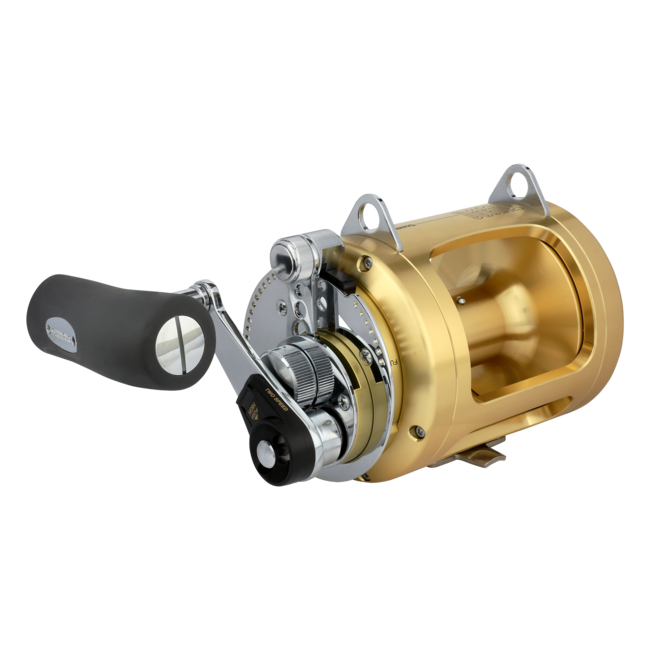

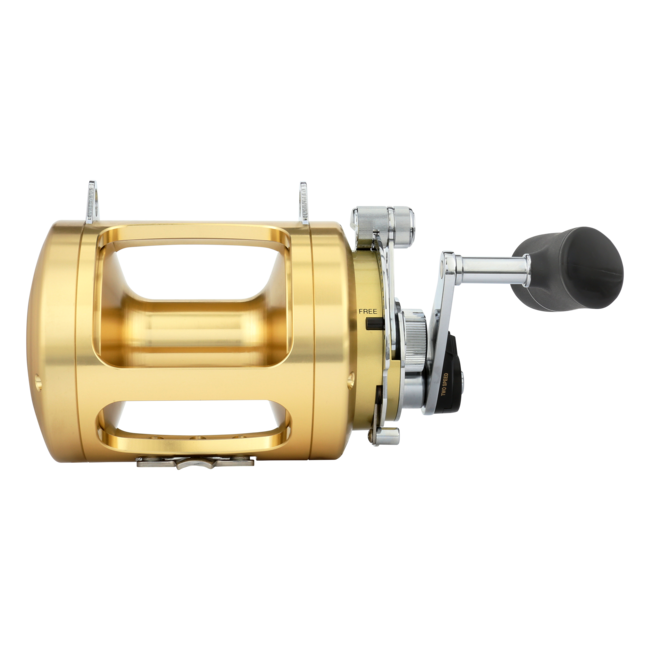

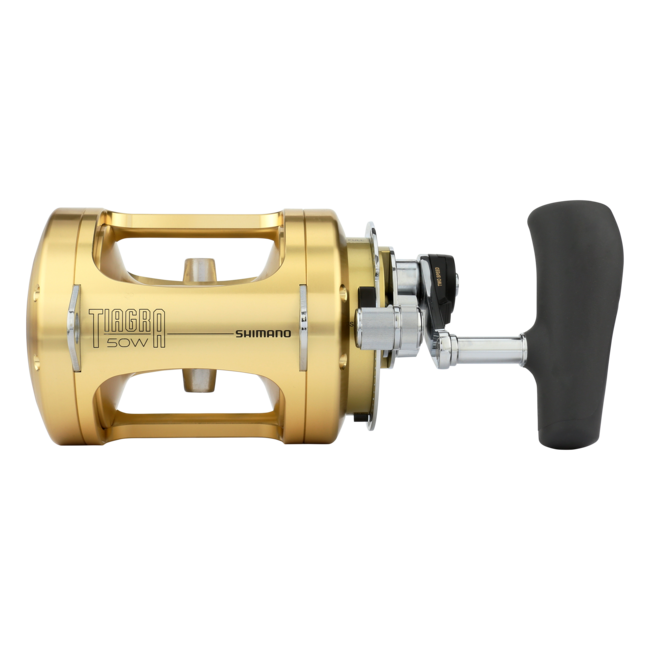

TI50WA |
86.2 |
80/1575, 100/1235, 150/1180 |
3.1:1 |
26 |
50/850 |
Right |
37 |
1.3:1 |
15 |
4 |
TI130A |
174.1 |
150/3315, 200/2770, 250/1955 |
2.1:1 |
88 |
130/1000 |
Right |
39 |
1.15:1 |
22 |
6 |
TI16 |
37.4 |
50/1210, 65/680, 80/520 |
3.9:1 |
31 |
16/980, 20/670, 30/430 |
Right |
36 |
1.7:1 |
16 |
6 |
TI30A |
52.4 |
50/1805, 65/1065, 80/770 |
3.9:1 |
35 |
30/700, 50/420 |
Right |
41 |
1.7:1 |
18 |
4 |

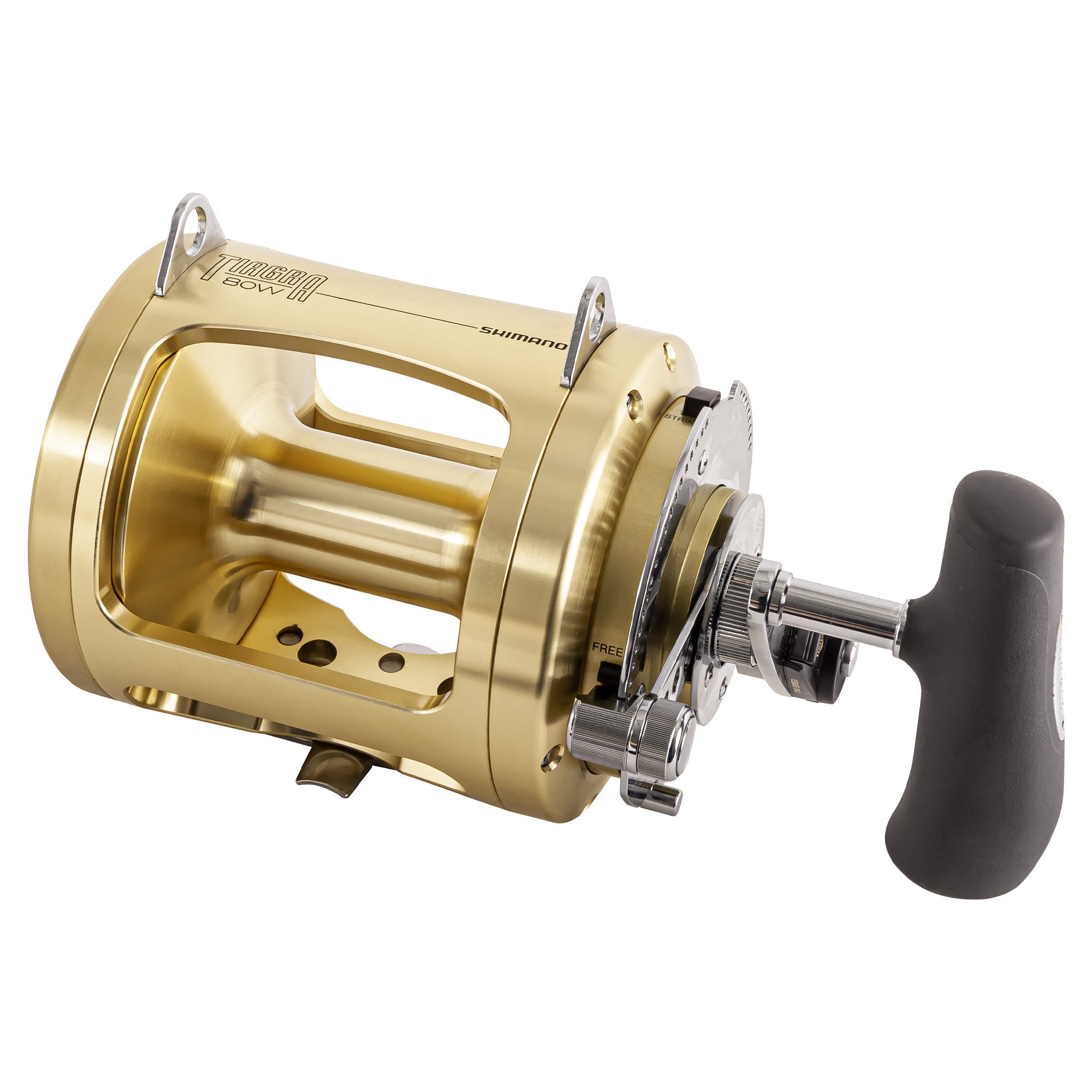

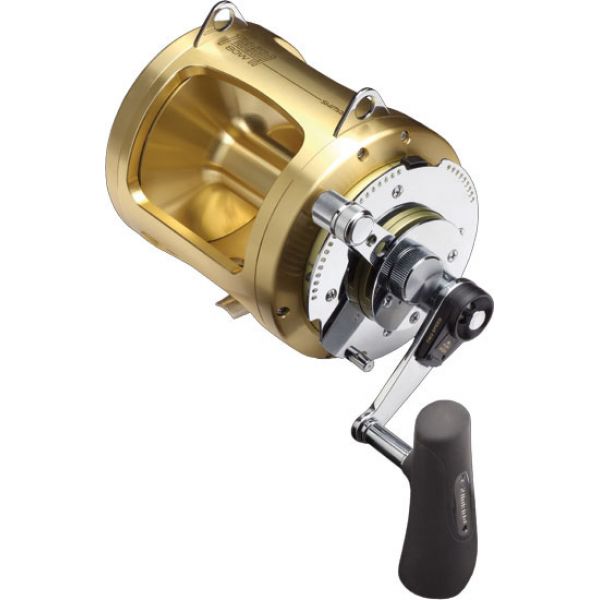

TI80WA |
115.2 |
100/2445, 150/2365, 200/1920 |
2.5:1 |
40 |
80/950 |
Right |
37 |
1.3:1 |
15 |
4 |
