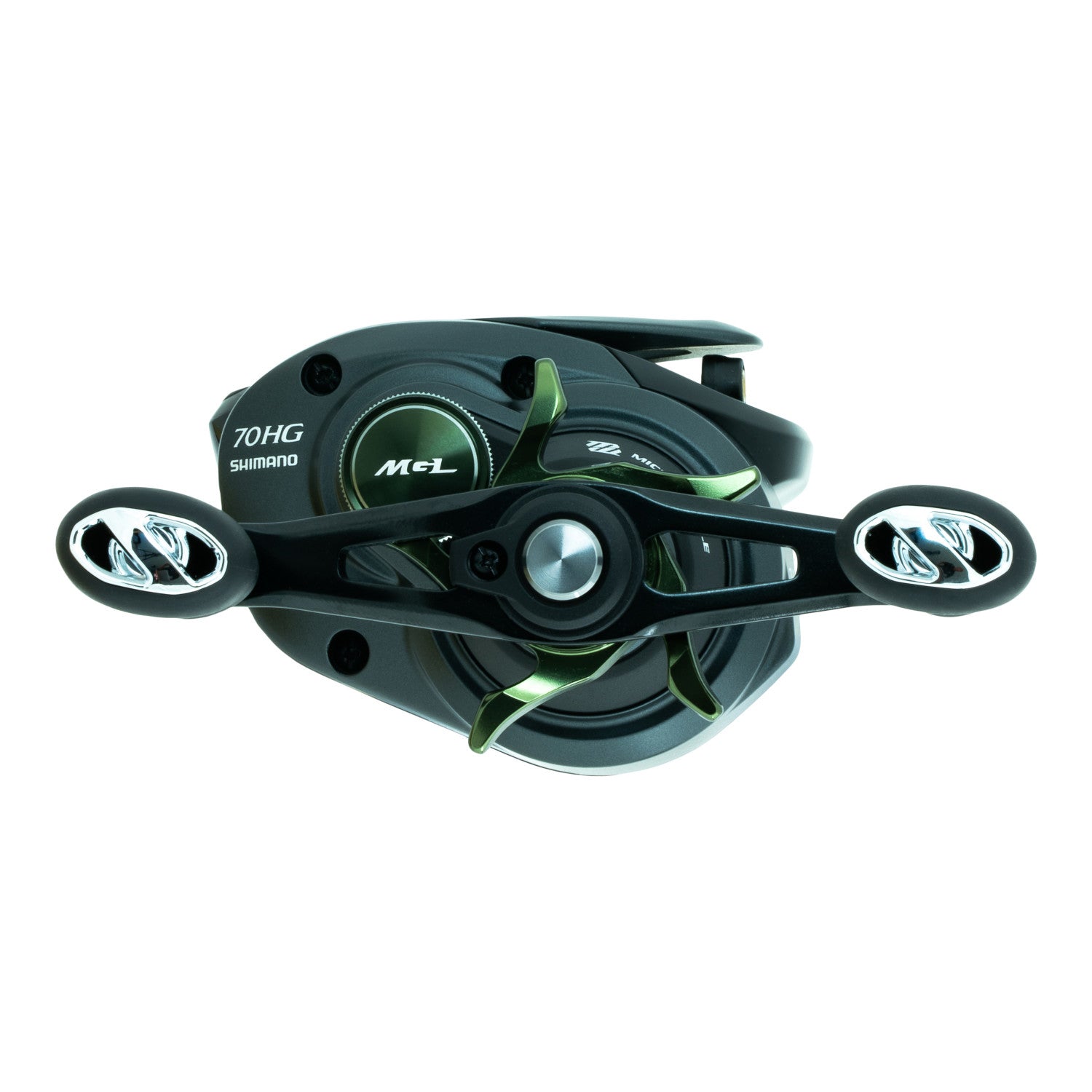

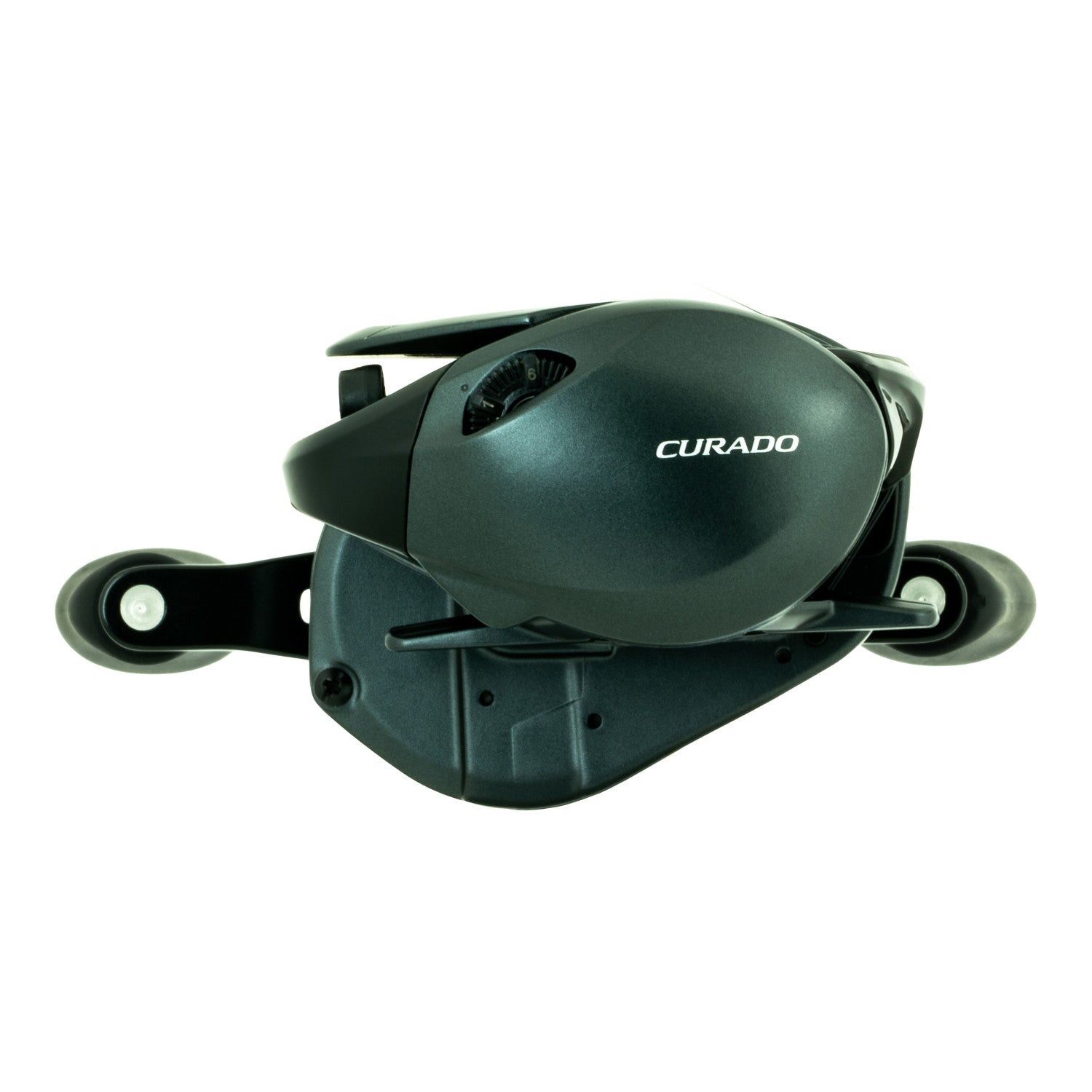

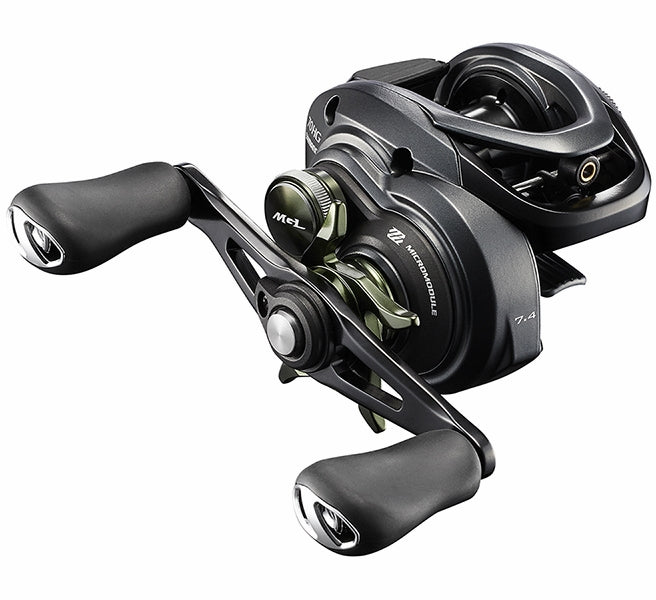

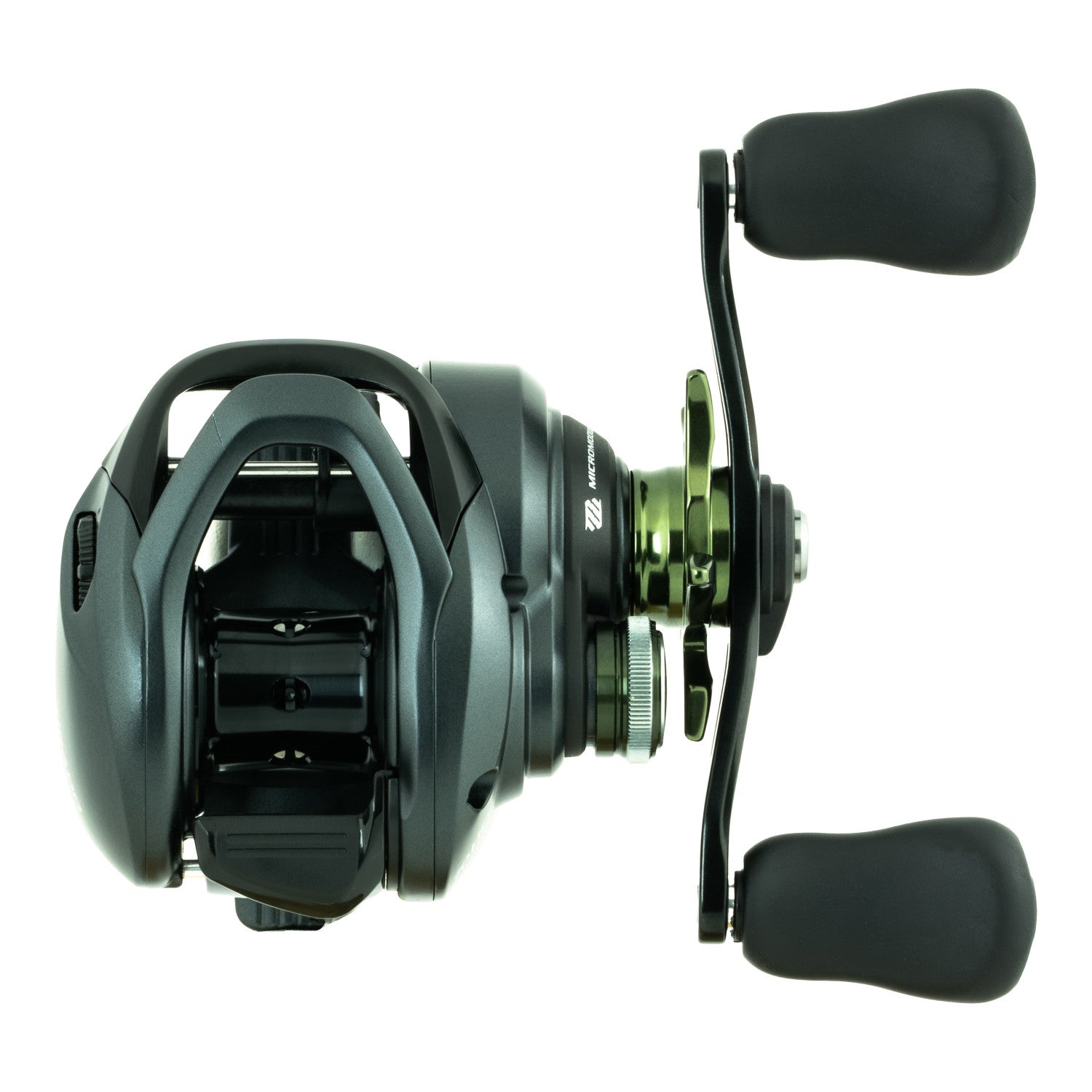

Small in hand but large in durability, dependability and performance, the Curado MGL 70 K is a new addition to Shimano’s coveted line of Curado low-profile reels. The reel’s lightweight MGL Spool requires less start-up energy due to decreased inertia and results in longer casts with reduced effort. This advanced feature also allows the reel to excel for anglers fishing with finesses baits, such as handmade balsa baits, or lures that require light line for maximum fishability. The new Curado MGL 70 K is a great reel choice for anglers pitching and flipping in tight cover when increased line capacity is not required. But anglers shouldn’t be concerned about its compact size when fighting fish in close quarters or heavy cover, the Curado MGL 70 K is equipped with a Cross Carbon Drag to provide the needed stopping power against large fish. And just like the rest of the Curado family of reels, the versatile Curado MGL 70 K features MicroModule Gear for enhanced smoothness as well as a HAGANE Body for increased rigidity and durability for years of fishing performance.
Shimano Technology Found In Curado MGL 70 K Baitcasting Reels:
-
Hagane Body - A reel body with high rigidity, which virtually eliminates body flexing due to its stiffness and impact resistance. The result? An angler's actions are more efficiently transformed into cranking power. It's efficiency through strength.
-
MGL II Spool - Lightweight spool design significantly reduces the moment of inertia, allowing the angler to experience greater casting distance and accuracy with a wide variety of lures.
-
MicroModule Gear - State-of-the-art gear design makes use of smaller gear teeth and more of them, which results in a more efficient gear train and much smoother retrieve.
-
SVS Infinity - Provides easy to manage, consistent spool control and brake force that is easily adjusted as conditions change. Brake weights use inner friction against the raceway during the cast for precision casting even when using lighter lures. The external adjustment knob provides quick, precise adjustments on the fly for when conditions or baits change.
-
Cross Carbon Drag - Allows for a wider range of drag settings, enhanced drag washer durability, and the smoothest Shimano drag performance ever.
-
X-Ship - By supporting the pinion gear on both ends with bearings, the pinion gear remains in precise alignment with the drive gear and stays in the same position under even the heaviest of loads. This eliminates friction between the spool shaft and gear which translates to better casting performance and increased gear durability.
-
Shimano Stable Spool Design (S3D) - S3D Technology utilizes a balanced and uniform thin wall aluminum spool to significantly reduce spool vibration and increase smoothness when casting and retrieving.
-
Super Free Spool - SFS was designed to eliminate friction on the spool shaft during the cast. The pinion gear is supported by a ball bearing, which keeps the gear in perfect alignment with the spool shaft to eliminate friction for longer casts and smoother operation.
-
S A-RB Bearings - These bearings undergo the same anti-corrosion process as Shimano's A-RB Bearings, with the addition of shields on both sides of the bearings to reduce the possibility of salt, dirt, or other foreign objects inhibiting the bearing's rotation.
Model |
Gear Ratio |
Line Per Handle Turn |
Mono Capacity (Lbs./Yds.) |
Braid Capacity (Lbs./Yds.) |
Weight (oz) |
Hand Retrieve |
Max. Drag (Lbs.) |
CUMGL70HGK |
7.3:1 |
29in |
10/105 12/85 14/70 |
20/115 30/105 40/80 |
6.9oz |
Right Hand |
12lb |
CUMGL70XGK |
8.1:1 |
32in |
10/105 12/85 14/70 |
20/115 30/105 40/80 |
6.9oz |
Right Hand |
12lb |
CUMGL71HGK |
7.3:1 |
29in |
10/105 12/85 14/70 |
20/115 30/105 40/80 |
6.9oz |
Left Hand |
12lb |
CUMGL71XGK |
8.1:1 |
32in |
10/105 12/85 14/70 |
20/115 30/105 40/80 |
6.9oz |
Left Hand |
12lb |
